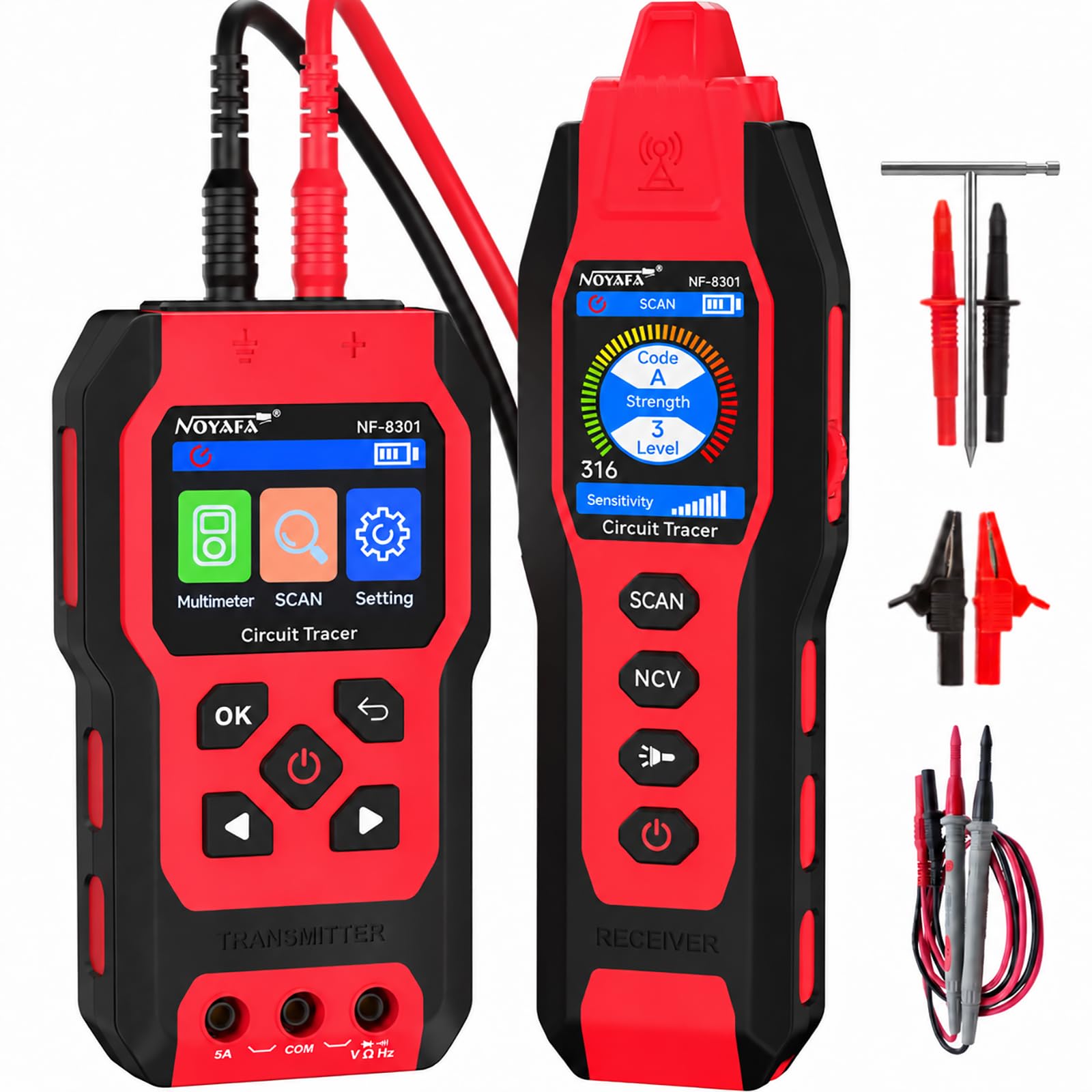

NOYAFA NF-8301 Circuit Tracer, Underground Wire Locator &Digital Multimeter
11 sold in last 24 hours
- Advanced Circuit Tracer: NF-8301 circuit tracer kit accurately tracks energized and de-energized circuits, helping locate wire paths, cable breaks, and short circuits. Ideal for underground wire tracing, in-wall wiring, metal conduits, and heating pipelines, making electrical troubleshooting faster and more reliable

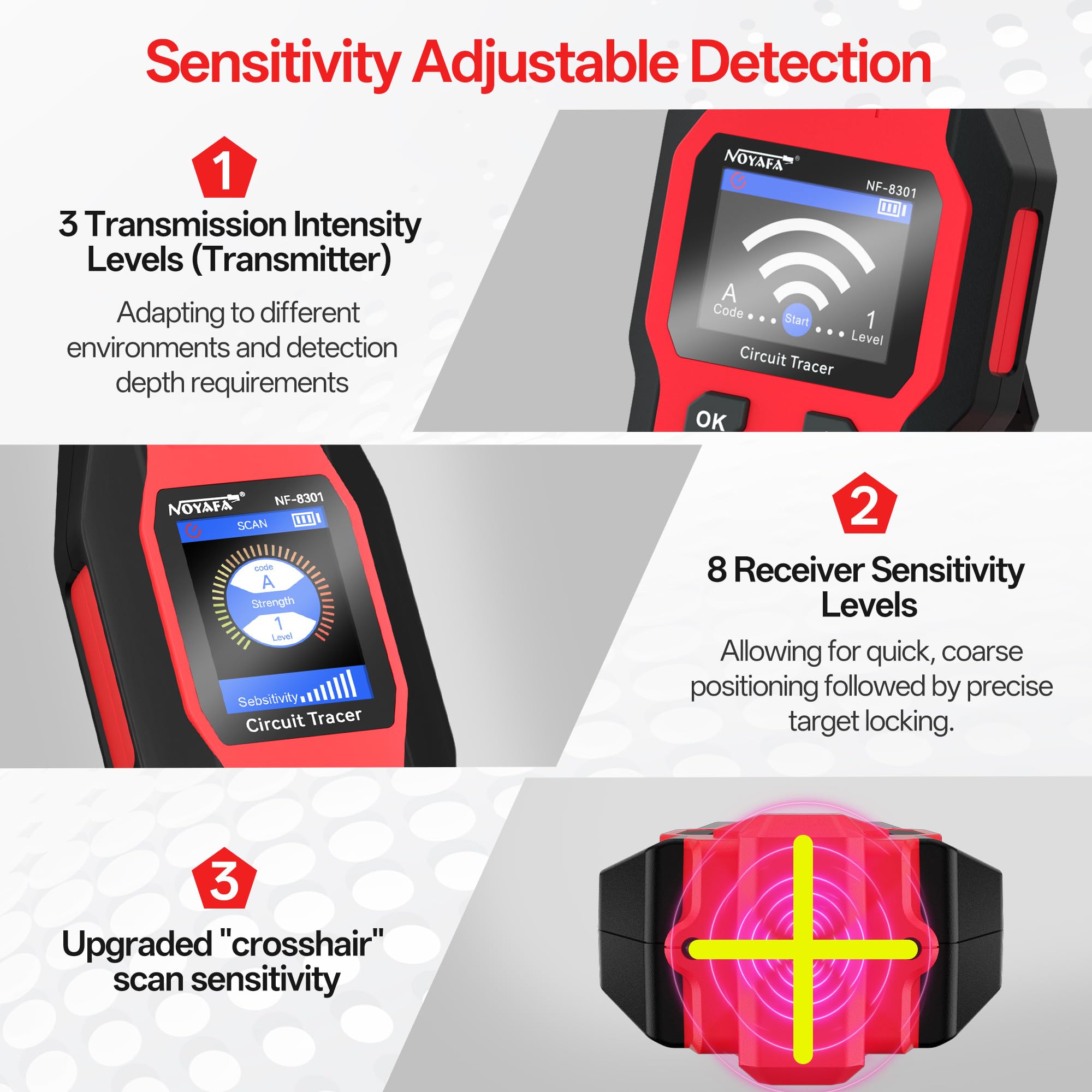

- 8-Level Adjustable Sensitivity: This wire tracer receiver features 8 adjustable sensitivity levels to detect signals through drywall, concrete, brick walls, and underground materials. Start with high sensitivity for fast scanning, then switch to lower levels for accurate wire and cable positioning
- Signal Strength Indicator: Built-in beeping alerts and signal strength display bar provide clear feedback to help identify wire direction and target cables, reducing false readings when tracing electrical wires, metal pipes, and conduits

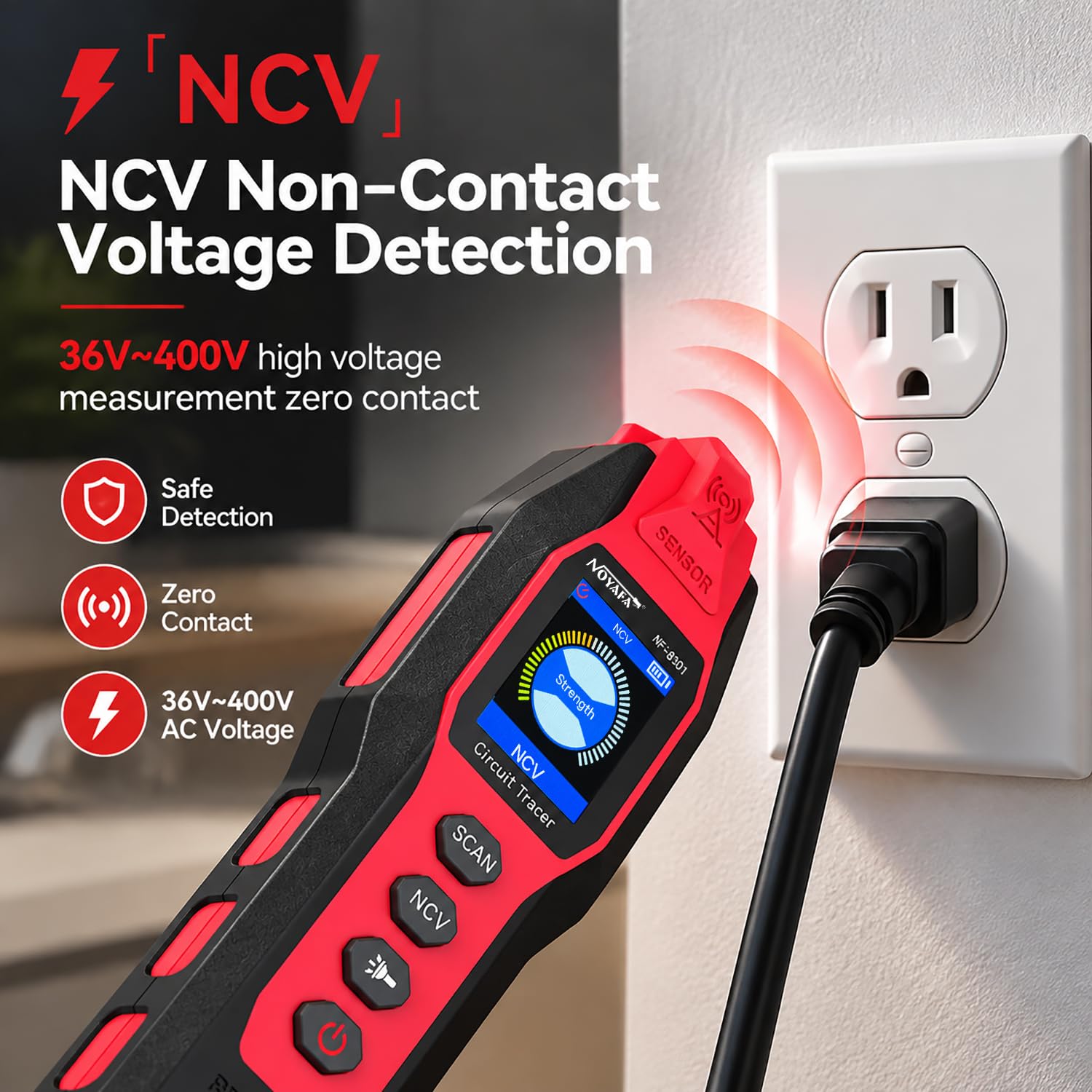

- Built-in Flashlight & NCV Tester: The receiver includes a built-in LED flashlight for dark working environments and NCV non-contact voltage detection to quickly check if wires are live, improving safety when working with wall wiring, outlets, and electrical circuits

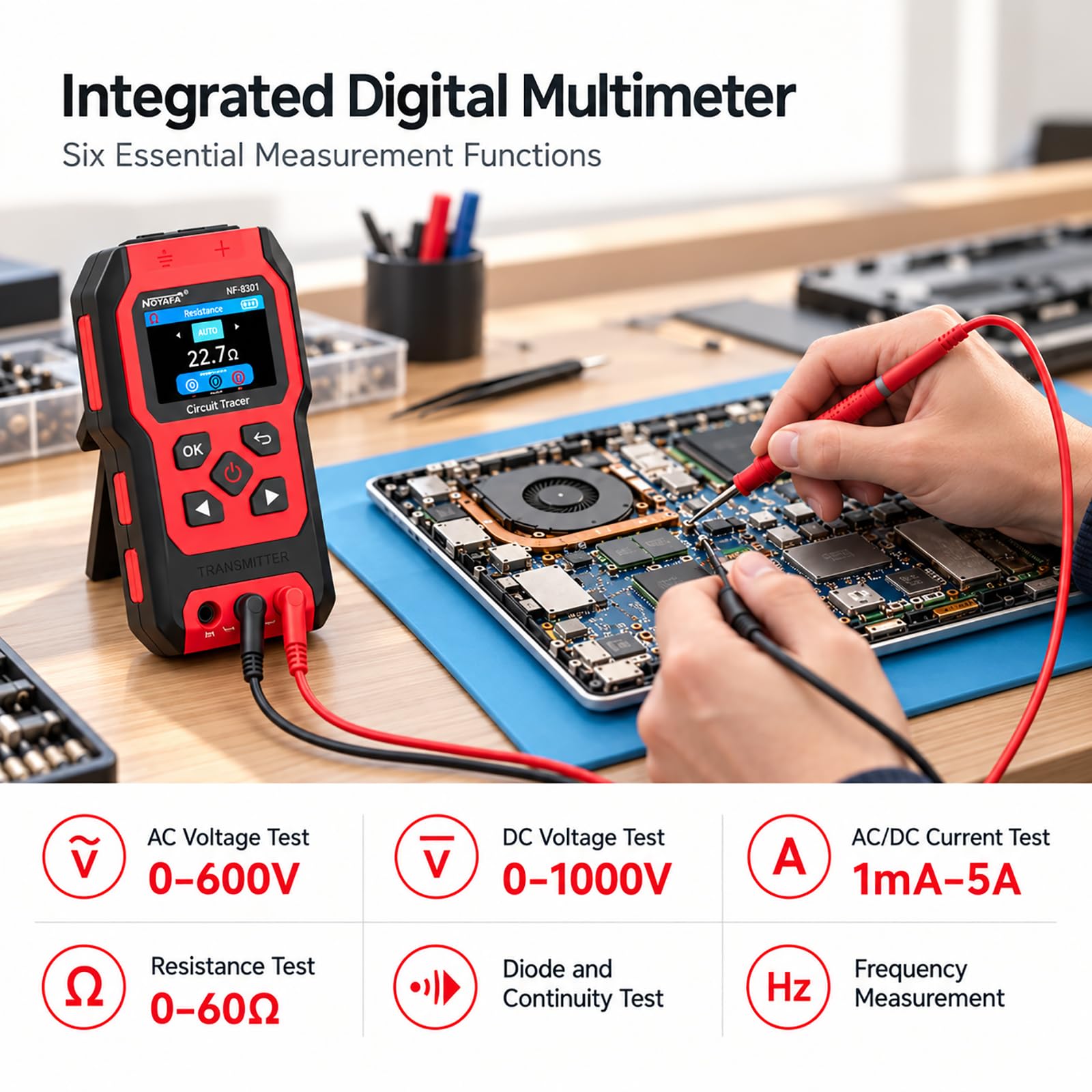

- Integrated Digital Multimeter: The transmitter supports test probes to measure AC/DC voltage, continuity, resistance, current, and frequency, combining a circuit tracer and digital multimeter in one tool for electricians, technicians, and DIY users

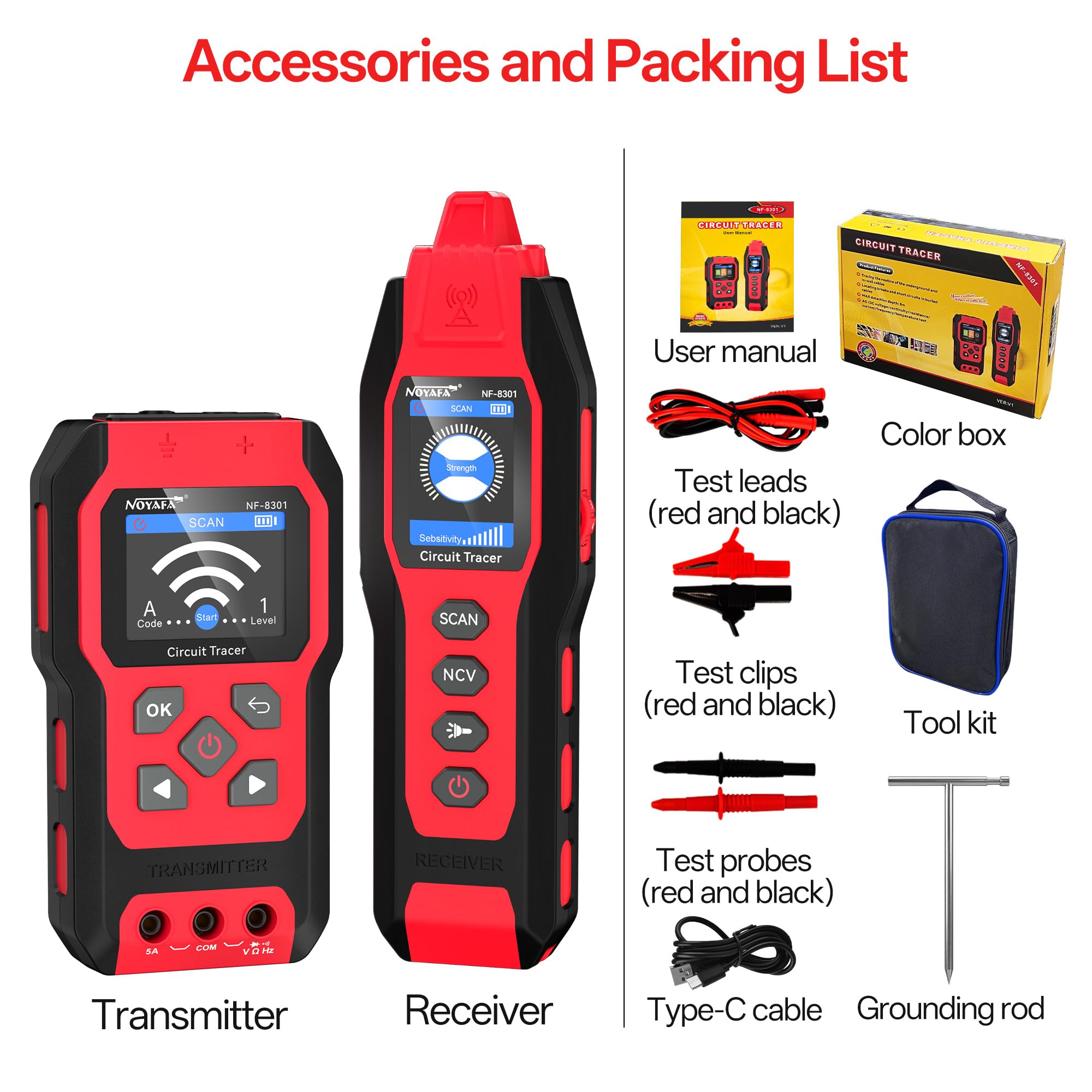

- Ready to Use Out of the Box: You will receive: Transmitter x1, Receiver x1, Test Pen, Test Clip, Test Cables (Red and Black) x1, Grounding Rod x1, Charging Cable x1, User Manual x1, Tool Kit x1. All listed accessories are included in the package. No additional tools required for circuit tracing, testing, or troubleshooting
Tags |
Estimated shipping

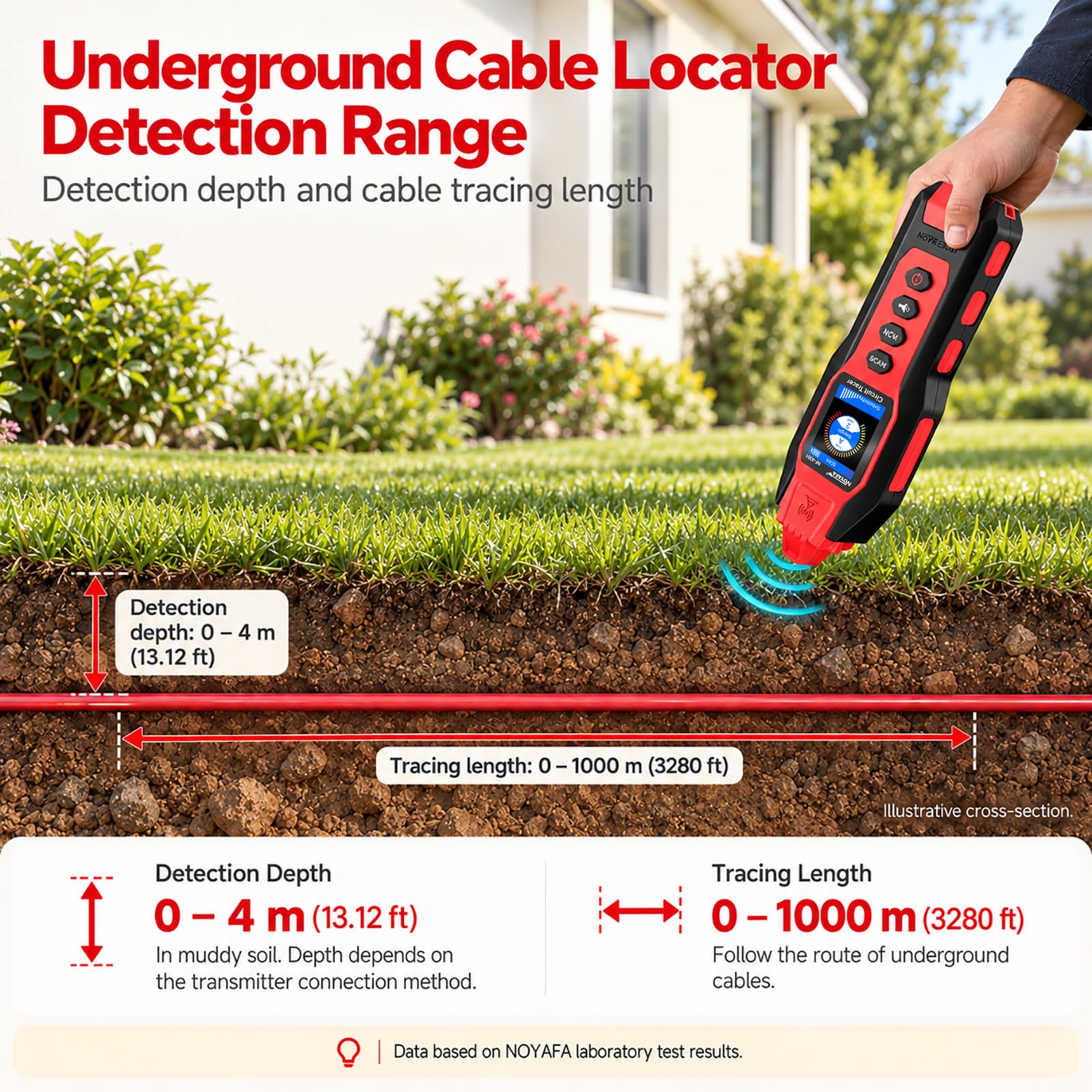

Select a product to estimate shipping.How deep can the NF-8301 detect underground cables?
Detection depth depends on the connection method, cable length, grounding, and surrounding conditions. The manual lists approximately 4 m with independent grounding under suitable conditions.(When the cable length is 100m)

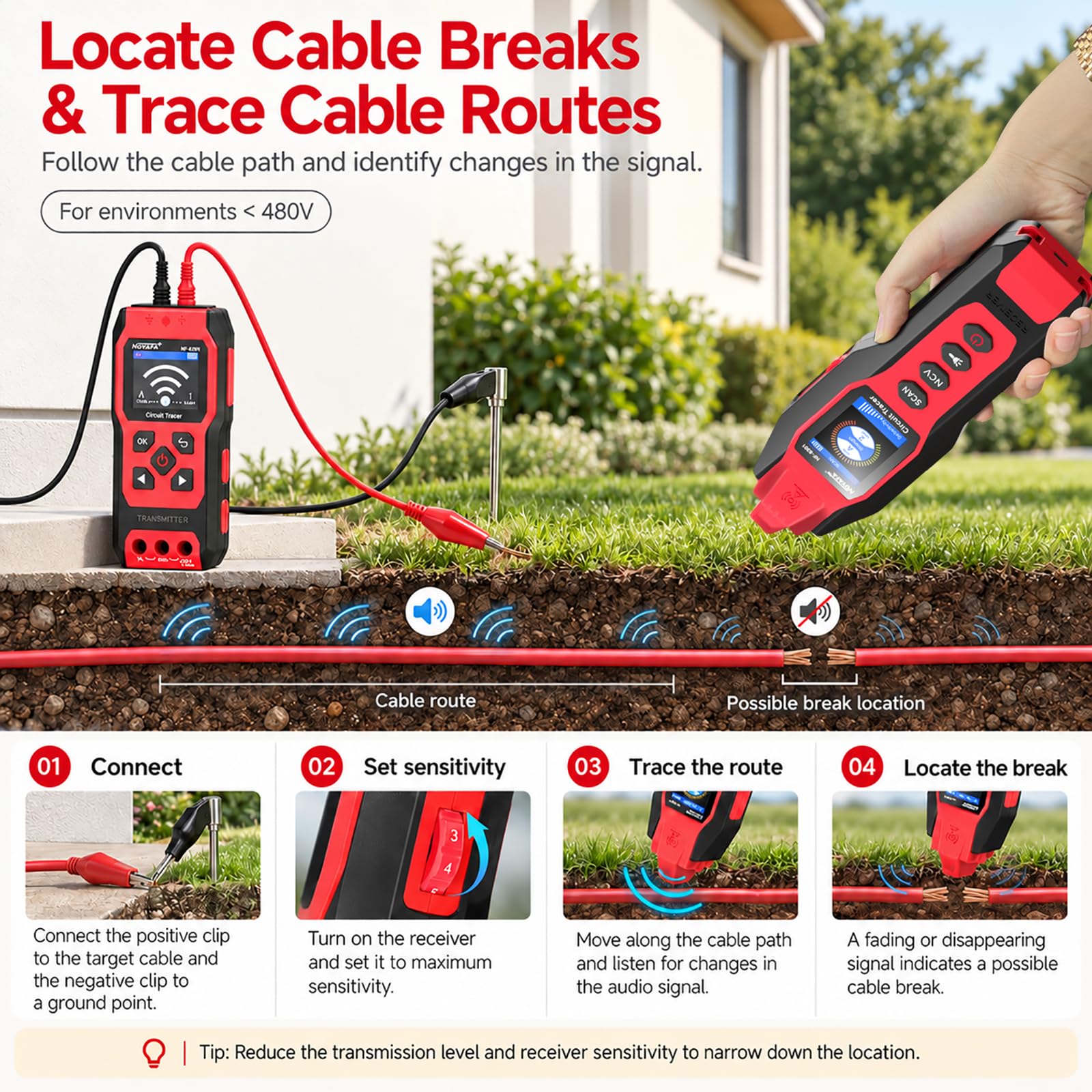

Can it locate cable breaks and short circuits?
Yes. NF-8301 helps locate faults by tracing changes in signal strength along the cable. For multi-core cables, identify the faulty conductor or shorted pair before testing. Partially broken wires and incomplete short circuits may be harder to locate.
Can it trace metal pipes, plastic pipes, and cables inside metal conduits?
It traces metal pipes directly. Plastic pipes need an inserted metal wire or probe. Cables in metal conduits are best identified at accessible exits.
What is the difference between NCV detection and the built-in multimeter?
NCV provides a non-contact indication of nearby AC voltage; it does not display a voltage measurement or confirm that a circuit is safe to touch. The multimeter uses test leads to measure AC/DC voltage, resistance, continuity, current, and frequency.
How do I adjust the sensitivity for more precise tracing?
Start high to find the cable route, then lower sensitivity to pinpoint it. Follow the strongest signal and ensure proper grounding.
Product details
| Main Specification | |
|---|---|
| Composantes incluses | Charging Cable or Receiver or Transmitter or Test Pen or Test Clip or TestCables or GroundingRod |
| Appareils compatibles | Underground Cables or Circuit Breakers or Electrical Wiring Systems or Fuse Boxes |
| Fabricant | NOYAFA |
| Numéro d'unité | 1 Compte |
| Spécifications satisfaites | CE |
| Marque | NOYAFA |
| Source d'énergie | Batterie alimentée |
| Indice de température supérieure | 104 °F |
| Couleur | Red and Black |
| Style | Moderne |
| Poids de l'article | 0.5 kg |
| Product information | |
| Température inférieure | 14 °F |
| Nombre d ' emballages | 1 |
| Technical Details | |
| Type de mesure | Voltage or Current or Resistance or continuity or Underground Cable Location or Wire Tracing |
| Numéro de pièce | Nf-826 |
| Modèle | NF-8301 |
| Maximum Operating Voltage | 460 volts |
| Style | |
| Nom du style | Moderne |
| Measurements | |
| Dimensions de l'article | 7.5 x 3.5 x 8.5 inches |
| Others | |
| Point en évidence | Irrigation or 8 Level Sensitivity Adjustment or Rechargeable Wire Tracer for Fuses or Wall Wires |
| Type de produit | Circuit Testers |
| Minimum Operating Voltage | 1.5 Volts |
| Maximum Alternating Current | 10 A |
| Direct Current Maximum | 10 A |
